The aviation industry’s continuous quest for aerodynamic efficiency and innovation is epitomized by the Flying Wing and Blended Wing Body (BWB) aircraft designs. These concepts challenge traditional aircraft architecture by eliminating the conventional fuselage, instead integrating the crew, payload, and equipment within the wing’s structure. This results in a sleek, streamlined form that significantly enhances aerodynamic performance.
The innovative nature of these designs brings several key advantages to the forefront of aviation technology. Notably, they offer reduced aerodynamic drag, leading to improved fuel efficiency—a critical factor in reducing aviation’s environmental footprint. Additionally, the potential for increased payload capacity presents exciting possibilities for both commercial and military applications.
However, realizing the full potential of Flying Wing and BWB designs is not without its challenges. The lack of traditional stabilizing and control surfaces makes these aircraft inherently unstable and more complex to control. Overcoming these technical hurdles requires the integration of advanced technologies and control systems to ensure stability and safety in flight.
This exploration delves into the distinctive features of Flying Wing and BWB aircraft, highlighting the aerodynamic benefits they introduce to the future of aviation. Despite the significant engineering challenges, these designs represent a bold step forward, offering a glimpse into the potential for more efficient, environmentally friendly aircraft in the decades to come.
Early Research and Evolution in Aerodynamics and Stealth Technology
Originating in the 1920s, the flying wing concept was extensively explored during World War II by both Nazi Germany and the Allies. Despite a decline in interest with the introduction of supersonic aircraft in the 1950s, the 1980s witnessed a resurgence in its application, particularly for stealth technology, exemplified by the development of the Northrop Grumman B-2 Spirit stealth bomber. While the potential for large transport flying wing airliners has been explored through various studies by companies such as Boeing, McDonnell Douglas, and Armstrong Whitworth, the practical implementation remains a subject of ongoing interest.
Predominantly suited for subsonic flight, the flying wing design has yet to see its application in supersonic aircraft, marking a unique boundary in its adaptability and use. The flying wing remains a symbol of innovation in reducing aerodynamic drag and enhancing efficiency, illustrating a continual evolution in aircraft design driven by both historical aspirations and future potential.
The flying wing aircraft, characterized by its absence of a traditional fuselage or tailplane, integrates crew, payload, fuel, and equipment within its main wing structure. This design, while typically streamlined with minimal protrusions such as pods, nacelles, and vertical stabilizers, offers unparalleled aerodynamic efficiency, significantly reducing drag and enhancing fuel efficiency.
Despite its theoretical advantages, the lack of conventional stabilizing and control surfaces makes flying wings inherently unstable and challenging to manage. This complexity can affect their safety and practicality, particularly for commercial aviation applications, due to difficulties in pitch and yaw control.
Pioneering Developments in Flying Wing Design
The history of aviation is rich with experimentation and innovation in tailless aircraft. Early 20th-century designs by Britain’s J.W. Dunne showcased inherent stability, inspiring subsequent designers like G.T.R. Hill and his Westland-Hill Pterodactyls series. However, despite early successes, challenges in securing governmental orders led to the program’s cancellation.
In Germany, Hugo Junkers’ vision for a wing-only air transport concept aimed to solve the challenges of large airliner construction. His designs, including the Junkers J 1 and the ambitious “Giant” JG1, laid the groundwork for future exploration, though they faced limitations imposed by postwar regulations.
The Soviet Union’s Boris Ivanovich Cheranovsky and other designers significantly advanced tailless flying wing gliders, leading to innovative aircraft that blurred the lines between gliders and powered planes. Similarly, in Germany, Alexander Lippisch and the Horten brothers made notable contributions to flying wing glider development.
In the United States, Jack Northrop’s pursuit of tailless designs resulted in the development of the N-1M prototype and the YB-35 flying wing bomber, showcasing the potential for long-range aviation applications.
From Charles Fauvel’s AV3 glider in France to the Horten brothers’ series in Germany, and Northrop’s prototypes in the USA, the early to mid-20th century was marked by a surge of creativity and experimentation with the flying wing concept. These efforts laid the foundation for understanding the complexities and potential of such radical departures from traditional aircraft design.
Flying Wing Aircraft in WWII: Innovations and Experimental Designs
During World War II, significant strides in aerodynamics led to a deeper understanding and development of the flying wing configuration, producing several prototypes that demonstrated the concept’s potential. In Nazi Germany, the Horten brothers stood out as fervent proponents of the flying wing design, creating distinctive models that utilized Ludwig Prandtl’s innovative “bell-shaped lift distribution.” Among their inventions was the Horten H.IV glider, manufactured in limited quantities between 1941 and 1943, alongside other German military aircraft that either adopted or were inspired by the flying wing concept to overcome the limited range of early jet engines.
A remarkable outcome of these endeavors was the Horten Ho 229 jet fighter prototype, heralded as the world’s first purely flying wing aircraft powered by jet engines. This pioneering design, known as the “V2,” took to the skies in 1944, showcasing the feasibility of combining flying wing aerodynamics with jet propulsion. Tragically, the first flight ended in disaster, resulting in the death of pilot Erwin Ziller due to an engine flameout. Despite plans for mass production of the Gotha Go 229, a variant intended for diverse military roles, the project was halted, leaving the nearly completed “V3” prototype to be captured by American forces. It is currently preserved at the Smithsonian Institution.
Allied forces also contributed significantly to flying wing research, typically employing conventional lift distributions with additional vertical tail surfaces for stability. Northrop’s N-9M, a scaled development model for a proposed long-range bomber, underwent testing in 1942. Although several N-9Ms were built, the project was eventually discontinued, and the aircraft were scrapped. In the UK, the Baynes Bat glider represented another innovative application of the flying wing concept, aimed at exploring the conversion of tanks into temporary gliders during the war.
The Armstrong Whitworth A.W.52G, a British glider, marked another step forward, serving as a testbed for a potential transatlantic flying wing airliner. Its successor, the jet-powered A.W.52, aimed to achieve high-speed flight with a focus on laminar flow. Despite initial promise, the A.W.52’s performance was ultimately seen as disappointing, with the first prototype crashing in 1949. This incident marked the first use of an ejection seat in an emergency by a British pilot. The second prototype continued operations until 1954, contributing valuable data to the ongoing exploration of flying wing designs.
Flying Wings in the Postwar Era and Beyond: Evolution and Innovation
In the aftermath of World War II, the exploration and development of flying wing aircraft continued to evolve, with significant advancements and projects marking the era. The Northrop YB-35 long-range bomber project, initiated in 1941, transitioned into the jet-powered YB-49 variant by 1947, reflecting the era’s shift towards jet propulsion. Despite early turbojet engines’ high fuel consumption, the YB-49 achieved a breakthrough in speed, completing a historic transcontinental flight in 1949 that set a new speed record.
The Soviet Union’s BICh-26 was an early attempt at creating a supersonic jet flying wing in 1948, considered ahead of its time but ultimately not adopted by the military. Similarly, various nations explored the flying wing concept, with projects like Turkey’s THK-13 tailless glider and early designs for the Avro Vulcan in the United Kingdom.
Despite dwindling military interest with the rise of supersonic aircraft in the 1950s, the 1980s saw a renewed interest in flying wings due to their stealth capabilities. The Northrop Grumman B-2 Spirit stealth bomber exemplifies the successful integration of flying wing aerodynamics with stealth technology, aided by modern fly-by-wire systems.
The flying wing concept has shown promise for large transport roles, with companies like Boeing, McDonnell Douglas, and Armstrong Whitworth conducting studies, though no airliners have been built to date. The bi-directional flying wing, introduced in 2011, represents a novel approach, featuring variable geometry for efficient subsonic and supersonic flight, supported by NASA research.
In recent decades, unmanned aerial vehicles (UAVs) and unmanned combat aerial vehicles (UCAVs) have utilized flying wing designs for reconnaissance and combat roles, demonstrating the concept’s versatility and potential in modern aviation. Despite the challenges, the flying wing continues to inspire innovation, reflecting a lasting legacy and ongoing exploration in the quest for aerodynamic efficiency and stealth.
The ATB Project and the Pioneering Northrop Grumman B-2 Spirit Stealth Bomber

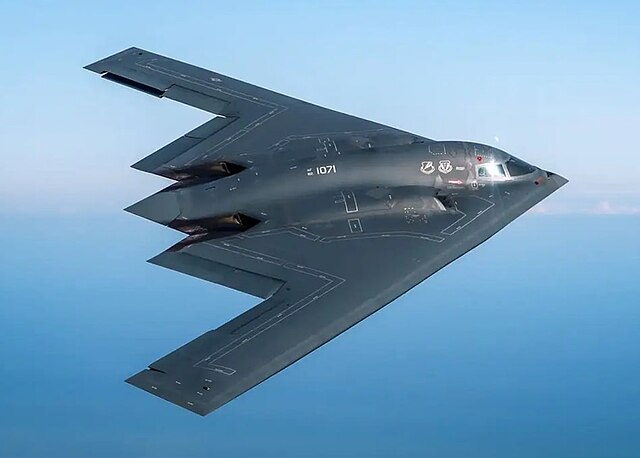

The Northrop Grumman B-2 Spirit, famously dubbed the Stealth Bomber, stands as a pinnacle of American military engineering, embodying the zenith of low-observable stealth technology. Developed to penetrate the world’s most formidable anti-aircraft defenses, this flying wing aircraft, hosting a crew of two, was produced from 1987 to 2000 by Northrop, now Northrop Grumman.
With its unmatched versatility, the B-2 Spirit can deliver a broad range of ordnance, from conventional bombs to thermonuclear weapons. It uniquely carries up to eighty 500-pound Mk 82 JDAM GPS-guided bombs or sixteen 2,400-pound B83 nuclear bombs, making it the only aircraft of its kind acknowledged to operate in stealth while carrying substantial air-to-surface weaponry.
Originating from the Advanced Technology Bomber (ATB) project during the Carter administration, the B-2’s development was instrumental in phasing out the supersonic B-1A bomber. Despite facing numerous obstacles that delayed progress and inflated costs, the B-2 program ultimately produced 21 aircraft at an average cost of $2.13 billion each (equivalent to about $3.88 billion in 2022), covering development, engineering, testing, production, and procurement.
The project’s substantial financial and operational demands led to congressional debate, particularly as the Cold War’s end reduced the perceived need for such a specialized stealth bomber. This resulted in a significant reduction in the initially planned fleet, from 132 to just 21 aircraft.
As of 2015, twenty B-2s were in service, with one lost to a crash in 2008. The United States Air Force plans to maintain the fleet until 2032, anticipating its eventual replacement by the Northrop Grumman B-21 Raider. This enduring legacy of the B-2 Spirit underscores its significance in the annals of military aviation, reflecting both the challenges and triumphs of pioneering stealth technology.
Why More Than 100 B-21 Bombers Are Needed
Defense analysts are advocating for an increase in the number of B-21 bombers beyond the currently planned 100 units, emphasizing the aircraft’s versatility and crucial role in future conflicts. The B-21 bomber is poised to undertake a wide range of missions, including pathfinding through enemy air defenses, airfield attacks, minelaying, direct conventional attack, and nuclear deterrence. The multifaceted capabilities of the B-21 mean that the demand for these bombers could easily exceed the supply if the number is limited to the initially planned 100 units.
The Air Force initially stated a range of “80-100 bombers” for the B-21 program, a figure that was aimed at starting the program within a feasible budget. However, this number did not go through a standard calculation, and there is now a call to reassess this figure. Analysts suggest adding an attrition reserve for accidents and battle losses, a practice that was common in the past.
Moreover, the B-21 will be the only bomber capable of performing direct attacks on targets deep inside China and Russia. It could be used for various missions, including clearing a path through enemy air defenses for other aircraft or attacking Chinese ships in a Taiwan scenario. This diverse range of operations places a high demand on the number of available aircraft.
The flexibility of the B-21 also raises strategic considerations. In a conventional war, if there’s a threat of nuclear escalation, the U.S. might face dilemmas such as whether to pull aircraft out of theater to bolster nuclear deterrent posture or degrade the triad to increase operational tempo in conventional operations.
Exploring the Future Jetliner with JetZero’s Blended Wing Body Aircraft Concept
JetZero is spearheading a groundbreaking shift in aviation with the launch of its new jetliner concept, the Blended Wing Body (BWB) aircraft. This cutting-edge design merges the wings and body into a sleek, unified structure that drastically enhances aerodynamic efficiency and promises to revolutionize air travel.
The BWB concept goes beyond aesthetic innovation; it represents a crucial move towards minimizing drag and boosting fuel efficiency. By integrating the aircraft’s design, JetZero significantly reduces the surface area affected by air resistance, leading to decreased fuel usage and lower greenhouse gas emissions. This development is in line with the aviation industry’s goal to combat climate change and promote sustainable flight operations.
Furthermore, JetZero’s BWB aircraft offers potential improvements in passenger comfort and cargo capacity. Its distinctive design enables more versatile cabin layouts and the possibility of increased space for both passengers and luggage, potentially transforming the in-flight experience with wider seats, more legroom, and enhanced amenities.
At the Singapore Air Show in 2020 Airbus rolled out a proof-of-concept, scale model of its futuristic, aerodynamic aircraft design that’s potentially poised to revolutionize the industry. A product of its research-and-development arm, Airbus’ latest aircraft demonstrator, dubbed ‘MAVERIC’ (Model Aircraft for Validation and Experimentation of Robust Innovative Controls), actualizes what the company calls a “blended-wing body” design, which it believes could be a game-changer for commercial aircraft development.
However, transitioning to BWB technology involves overcoming certain engineering and regulatory challenges. The aircraft’s unconventional shape necessitates advancements in materials, propulsion, and control systems. Additionally, updating existing airport infrastructure to accommodate BWB aircraft presents a significant obstacle.
JetZero’s commitment to BWB technology marks a significant stride toward the future of eco-friendly and efficient air travel. As this innovative concept progresses from theoretical designs to potential prototypes, it could signify a pivotal moment in aviation history by establishing new benchmarks for sustainable and efficient flying.
The introduction of new jetliner concepts, such as JetZero’s BWB aircraft and other innovative designs, brings hope to airlines contending with rising fuel costs. It also provides an opportunity for Boeing to regain its competitive edge against Airbus’ A321neo by rejuvenating its engineering prowess.
While BWB concepts are not novel, JetZero’s establishment in 2021 with the goal of crafting the next generation of sustainable jets underscores the aviation industry’s ambition to achieve net-zero emissions by 2050. Based in Long Beach Airport, California, JetZero’s team, including founder and CTO Mark Page, possesses extensive engineering expertise in BWB technology. Page, a former McDonnell Douglas program manager, spearheaded a NASA initiative in the 1990s to explore BWB designs, a project that has seen NASA invest over $1 billion in blended wing technology R&D.
California-based startup JetZero has secured a $235 million contract from the US Air Force to develop and showcase a prototype of a blended wing body (BWB) aircraft by 2027. The BWB design seamlessly integrates the aircraft’s body with its high-aspect-ratio wing, resulting in reduced aerodynamic drag and improved fuel efficiency.
JetZero has made a significant leap forward in March 2024 with the FAA granting an airworthiness certificate for its 12.5% scaled blended wing body (BWB) demonstrator. This milestone allows the unmanned, twin-engine aircraft, known as the “Pathfinder,” to commence flight tests at Edwards Air Force Base in California, marking a pivotal step in the evolution of BWB technology.
The Apex of Aerodynamic Innovation in Aviation are the Flying Wing and BWB Aircraft
The flying wing and Blended Wing Body (BWB) aircraft designs represent the pinnacle of aerodynamic innovation and environmental stewardship in aviation. These avant-garde concepts, blending form and function into seamless, efficient designs, are not just engineering marvels but also harbingers of a more sustainable future in air travel. By significantly reducing drag and optimizing fuel efficiency, they offer a promising path towards reducing aviation’s carbon footprint, aligning with global sustainability goals.
Despite the challenges inherent in adopting such radical designs, including engineering complexities and the need for infrastructure adaptation, the potential benefits in terms of efficiency, passenger comfort, and environmental impact make the pursuit of flying wing and BWB technologies a worthy endeavor.
The flying wing design remains at the forefront of aviation innovation, captivating engineers and designers with its potential to redefine aerodynamic efficiency. This enduring fascination underscores the relentless pursuit of advancements in aircraft development. As the aviation industry progresses, flying wing and Blended Wing Body (BWB) concepts stand poised to revolutionize air travel, promising a new era of aircraft that could significantly alter our flying experience.
By pushing the boundaries of design and technology, these avant-garde configurations offer a glimpse into a future where aviation is not only more efficient but also more sustainable. In this transformative journey, flying wing designs have the potential to set new standards for the next generation of aircraft, ensuring that the skies of tomorrow are greener and more efficient for the generations to come.
